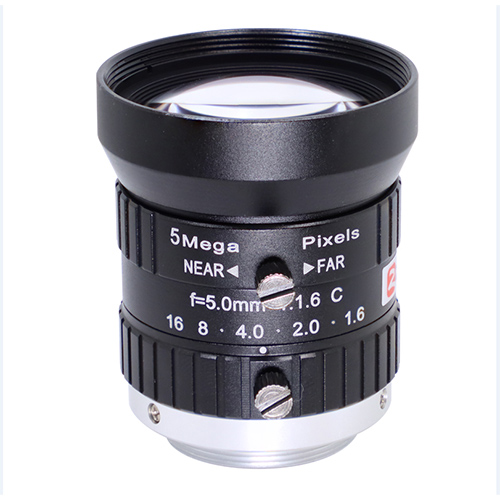

    C-Mount Lens VM0516MPC 5mm 5MP F1.6 Manual Iris camera Lens 1/1.7-inch
    1/1.7″C-Mount 5mm F1.6
    High resolution ,high clarity
    Can suppress stray light
    High resolution ,high clarity
    Locking set screws for focus and Iris
    Lower price,High cost performance
    Contact
    Tel:+86 020-38312466
    SpecificationsDimensionPDF downloadOther

    Model

    VM0516MPC

    Image Size

    1/1.7-inch

    Focal length

    5mm

    F No.

    F1.6

    M.O.D(m)

    0.1m-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1/1.8"Type

    69.2°x54.3°

    1/2" Type

    61.6°x48.4°

    Distortion

    1/1.8"Type

    -0.3%

    Mount

    C-Mount

    Dimension

    Ф39x42mm

    Weight

    96.0g

    Filter

    M37 P=0.75mm

    Remark

    5MP HD LENS

    Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/1.7″ C-mount
    ◆ Focal length：f=5mm
    ◆ F No.：F1.8-C
    ◆ Features：Manual Iris Lens 1/1.7-inch 5mm F1.6 C Mount Industrial camera Lens

    Model
    VM0516MPC

    Dimension


    Industries Application
    Suitable for Industrial Inspection . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C and so on
    VM0516MPC Specifications
