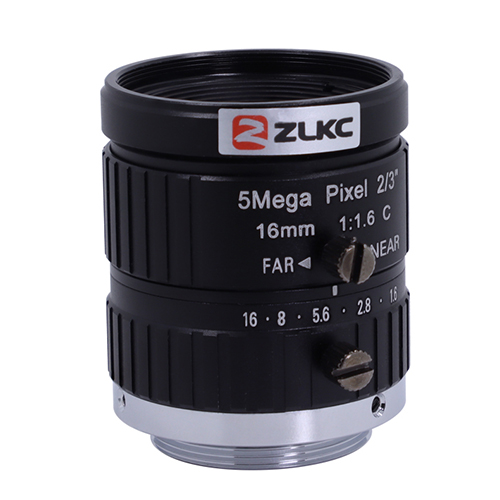

    C-Mount Lens VM1616MPC 16mm 5MP F1.6 Manual Iris camera Lens 2/3-inch
    2/3″C-Mount 16mm F1.6
    High resolution ,high clarity
    Can suppress stray light
    High resolution ,high clarity
    Locking set screws for focus and Iris
    Lower price,High cost performance
    Contact
    Tel:+86 020-38312466
    SpecificationsDimensionPDF downloadOther

    Model

    VM1616MPC

    Image Size

    2/3-inch

    Focal length

    16mm

    F No.

    F1.6

    M.O.D(m)

    0.15m-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    2/3"Type

    30.1°x22.7°

    1/1.8"Type

    24.7°x18.6°

    Mount

    C-Mount

    TV Distortion

    -0.2%

    Dimension

    Ф34x36.5mm

    Weight

    78.0g

    Filter

    M30.5 P=0.5mm

    Remark

    5MP HD LENS

    Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：2/3″ C-mount
    ◆ Focal length：f=16mm
    ◆ F No.：F1.6-C
    ◆ Features：Manual Iris Lens 2/3-inch 16mm F1.6 C Mount Industrial camera Lens

    Model
    VM1616MPC

    Dimension


    Industries Application
    Suitable for Industrial Inspection . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C and so on
