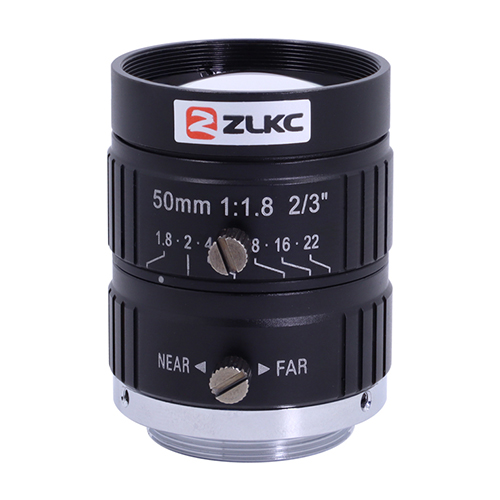

    C-Mount Lens VM5018MPC 50mm 5MP F1.8 Manual Iris camera Lens 2/3-inch
    2/3″C-Mount 50mm F1.8
    High resolution ,high clarity
    Can suppress stray light
    High resolution ,high clarity
    Locking set screws for focus and Iris
    Lower price,High cost performance
    Contact
    Tel:+86 020-38312466
    SpecificationsDimensionPDF downloadOther

    Model

    VM5018MPC

    Image Size

    2/3-inch

    Focal length

    50mm

    F No.

    F1.8

    M.O.D(m)

    0.3m-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    2/3"Type

    10.1°x7.6°

    1/1.8"Type

    8.2°x6.1°

    Mount

    C-Mount

    TV Distortion

    -0.3%

    Dimension

    Ф34x40.5mm

    Weight

    96.0g

    Filter

    M30.5 P=0.5mm

    Remark

    5MP HD LENS

    Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：2/3″ C-mount
    ◆ Focal length：f=50mm
    ◆ F No.：F1.8-C
    ◆ Features：Manual Iris Lens 2/3-inch 50mm F1.8 C Mount Industrial camera Lens

    Model
    VM5018MPC

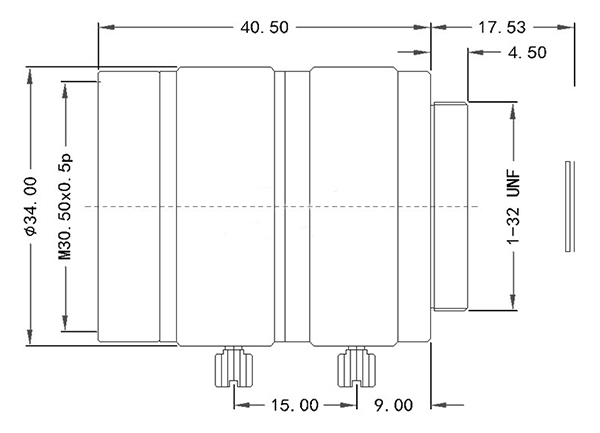

    Dimension


    Industries Application
    Suitable for Industrial Inspection . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C and so on
