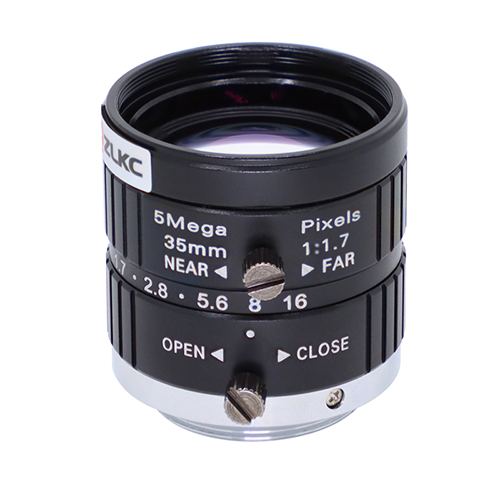

    C-Mount Lens VM3518MPC 35mm 5MP F1.7 Manual Iris camera Lens 2/3-inch
    2/3″C-Mount 35mm F1.7
    High resolution ,high clarity
    Can suppress stray light
    High resolution ,high clarity
    Locking set screws for focus and Iris
    Lower price,High cost performance
    Contact
    Tel:+86 020-38312466
    SpecificationsDimensionPDF downloadOther

    Model

    VM3518MPC

    Image Size

    2/3-inch

    Focal length

    35mm

    F No.

    F1.7

    M.O.D(m)

    0.3m-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    视场角Horizontal Angle of View

    2/3"Type

    14.8°x10.8°

    1/1.8"Type

    11.8°x8.8°

    1/2" Type

    10.5°x7.9°

    接口Mount

    C-Mount

    畸变TV Distortion

    -0.2%

    外形尺寸Dimension

    Ф34x32.5mm

    重量Weight

    115.0g

    滤镜尺寸Filter

    M30.5 P=0.5mm

    备注Remark

    5MP HD LENS

    Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：2/3″ C-mount
    ◆ Focal length：f=35mm
    ◆ F No.：F1.7-C
    ◆ Features：Manual Iris Lens 2/3-inch 35mm F1.7 C Mount Industrial camera Lens

    Model
    VM3518MPC

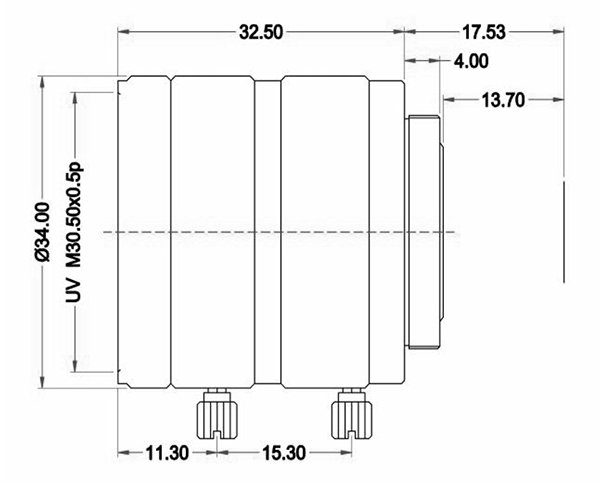

    Dimension


    Industries Application
    Suitable for Industrial Inspection . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C and so on
