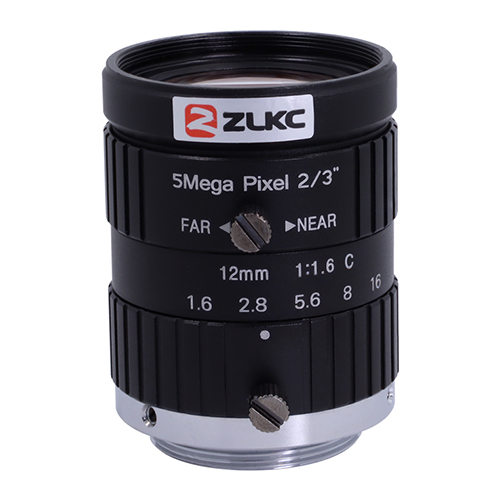

    C-Mount Lens VM1216MPC 12mm 5MP F1.6 Manual Iris camera Lens 2/3-inch
    2/3″C-Mount 12mm F1.6
    High resolution ,high clarity
    Can suppress stray light
    High resolution ,high clarity
    Locking set screws for focus and Iris
    Lower price,High cost performance
    Contact
    Tel:+86 020-38312466
    SpecificationsDimensionPDF downloadOther

    Model

    VM1216MPC

    Image Size

    2/3-inch

    Focal length

    12mm

    F No.

    F1.6

    M.O.D(m)

    0.1m-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    2/3" Type

    39.1°x29.8°

    1/1.8" Type

    32.4°x24.6°

    1/2" Type

    28.9°x21.9°

    Distortion

    2/3" Type

    -0.1%

    Mount

    C-Mount

    Dimension

    Ф34x41mm

    Weight

    96.0g

    Filter

    M30.5 P=0.5mm

    Remark

    5MP HD LENS

    Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：2/3″ C-mount
    ◆ Focal length：f=12mm
    ◆ F No.：F1.6-C
    ◆ Features：Manual Iris Lens 2/3-inch 12mm F1.6 C Mount Industrial camera Lens

    Model
    VM1216MPC

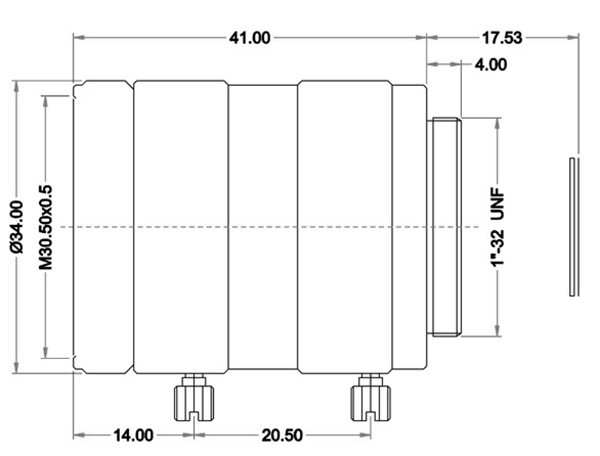

    Dimension


    Industries Application
    Suitable for Industrial Inspection . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C and so on
