2000万像素16mm低畸变FA镜头C Mount

物距Working Distance

倍率Optical Magnification

视野 4/3"Field of View(mm)

型号Model

KM1628MP20

mm

X

H

V

相机靶面Image Size

4/3-inch

5000

0.032X

5583.6

4185.4

焦距Focal length

16mm

2000

0.0079X

2238.7

1677.9

光圈范围F No.

F2.8-22

1000

0.0158X

1124.1

842.3

最短物距M.O.D(m)

0.1-Inf.

900

0.0176X

1012.7

758.9

控制方式Operation

Iris

Manual手动调整

800

0.0197X

901.7

675.7

Focus

Manual手动调整

700

0.0225X

790.0

592.0

视场角

Angle of View

(D×H×V)

4/3"

69°×57.6°×44.8°

600

0.0262X

678.5

508.4

1"

53.1°×43.6°×33.4°

550

0.0286X

622.7

466.5

2/3"

37.9°×30.8°×23.3°

500

0.0314X

566.9

424.7

畸变Distortion

<0.3%

450

0.0348X

511.2

383.0

光学后焦BFL

22.4mm

400

0.0391X

455.5

341.2

接口Mount

C-Mount

350

0.0445X

399.7

299.3

近摄视野Object Dimension

343.8mm×257.5mm(WD=300mm)

300

0.0518X

343.8

257.5

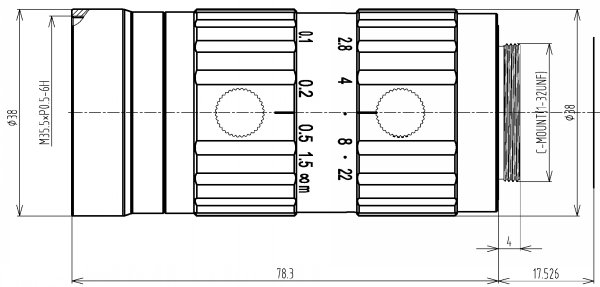

外形尺寸Dimension

Φ38×78.3mm

250

0.0618X

288.1

215.7

重量Weight

183.3g

200

0.0767X

232.2

173.8

滤镜尺寸Filter Thread

M35.5x 0.5

150

0.101X

176.4

132.0

工作温度Working Temperature

-20ºC ～ +60ºC

100

0.148X

120.5

90.1
