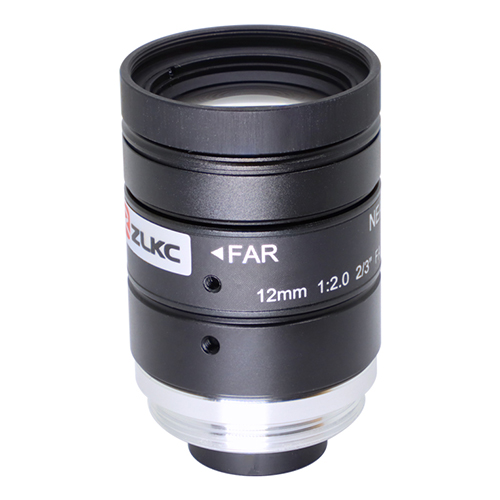

10MP Low distance lens 12mm 2/3”C Mount

Model

LM1220MP10

Image circle

2/3-inch (Φ11.4)

Focal length

12mm±5%

F No.

F2.0-16

M.O.D(m)

0.08-Inf.

Operation

Iris

Manual

Focus

Manual

Horizontal Angle of View

2/3"Type

48.1°×39.7°×27.5°

1/1.8"Type

39.7°×33.1°×22.3°

1/2"Type

35.8°×29°×21.9°

Distortion

At 0.4m

-0.1%

Back focal length

10.94mm

Flange Back Focal Length

17.526mm

Mount

C-Mount

Relative Illumination

65%

CRA

11°

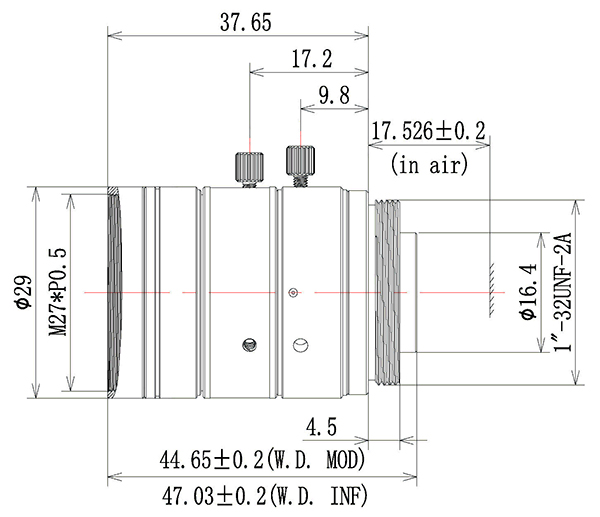

Dimension

Ф29x37.65mm

Weight

67.5g

Lens structure

10groups，11elements

Filter Thread

M27*P0.5

Working Temperature

-20ºC ～ +60ºC
