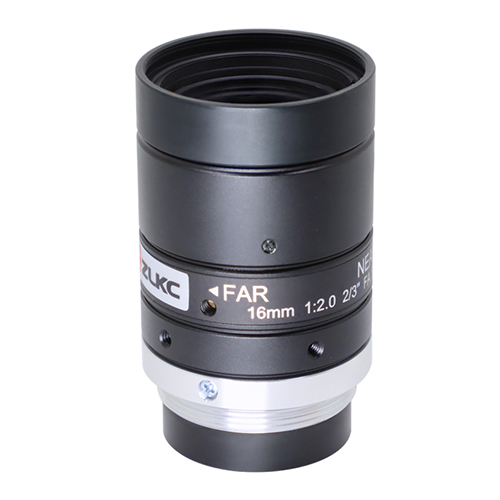

10MP Low distance lens 16mm 2/3”C Mount

Model

LM1620MP10

Image circle

2/3-inch (Φ11.4)

Focal length

16mm±5%

F No.

F2.0-16

M.O.D(m)

0.1-Inf.

Operation

Iris

Manual

Focus

Manual

Horizontal Angle of View

2/3"Type

37.4°×29.3°×24.7°

1/1.8"Type

30.8°×26.8°×17.3°

1/2"Type

27.6°×22.4°×16.8°

Distortion

At 0.4m

-0.1%

Back focal length

9.34mm

Flange Back Focal Length

17.526mm

Mount

C-Mount

Relative Illumination

63%

CRA

8.5°

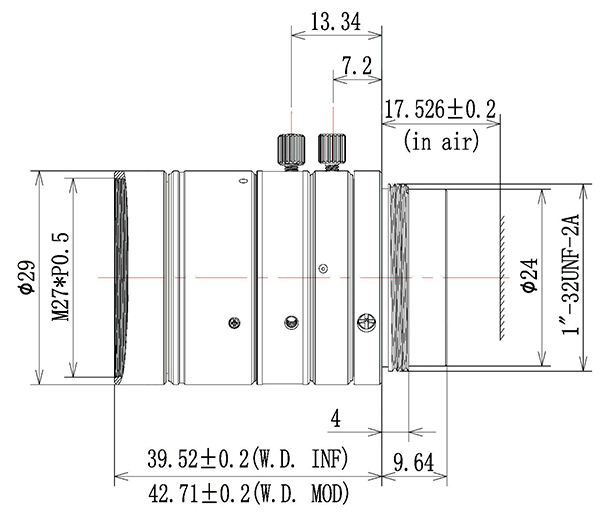

Dimension

Ф29x39.52mm

Weight

72.9g

Lens structure

7groups，9elements

Filter Thread

M27*P0.5

Working Temperature

-20ºC ～ +60ºC
