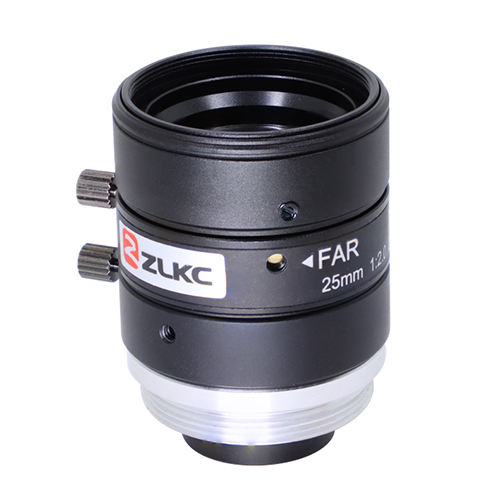

10MP Low distance lens 25mm 2/3”C Mount

Model

LM2520MP10

Image circle

2/3-inch (Φ11.4)

Focal length

25mm±5%

F No.

F2.0-16

M.O.D(m)

0.2-Inf.

Operation

Iris

Manual

Focus

Manual

Horizontal Angle of View

2/3"Type

23.9°×18.3°×15.4°

1/1.8"Type

19.4°×15.8°×10.7°

1/2"Type

17.4°×14.0°×10.5°

Distortion

At 0.4m

-0.14%

Back focal length

9.97mm

Flange Back Focal Length

17.526mm

Mount

C-Mount

Relative Illumination

63%

CRA

7.5°

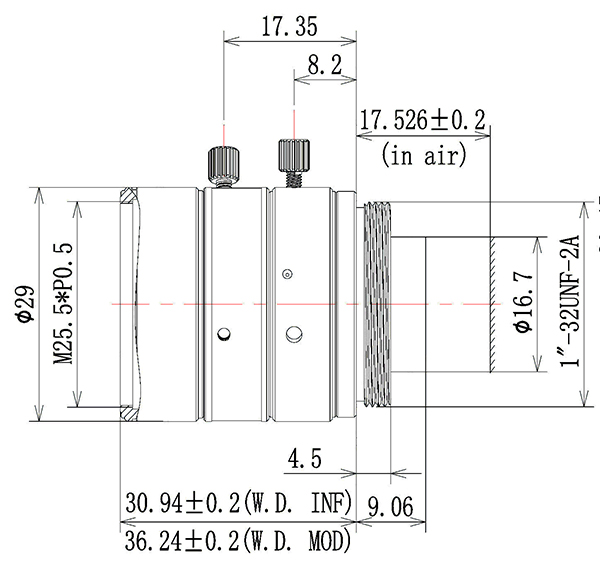

Dimension

Ф29x30.94mm

Weight

59.5g

Lens structure

5groups，8elements

Filter Thread

M25.5*P0.5

Working Temperature

-20ºC ～ +60ºC
