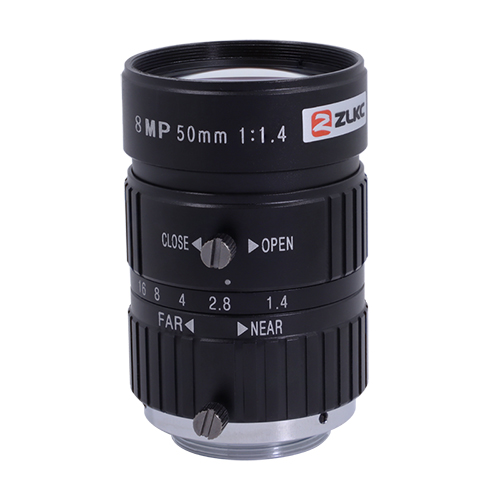

    C-Mount Lens VM5014MPC 50mm 8MP F1.4 Manual Iris camera Lens 1-inch
    1″C-Mount 50mm F1.4
    High resolution ,high clarity
    Can suppress stray light
    High resolution ,high clarity
    Locking set screws for focus and Iris
    Lower price,High cost performance
    Contact
    Tel:+86 020-38312466
    SpecificationsDimensionPDF downloadOther

    Model

    VM5014MPC

    Image Size

    1-inch

    Focal length

    50mm

    F No.

    F1.4

    M.O.D(m)

    0.5m-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Distortion

    2/3" Type

    -1.2%

    1" Type

    -1.5%

    Horizontal Angle of View

    1"Type

    10.7°

    Mount

    C-Mount

    Dimension

    Ф36x53mm

    Weight

    115.0g

    Remark

    8MP HD LENS

    Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1″ C-mount
    ◆ Focal length：f=50mm
    ◆ F No.：F1.4-C
    ◆ Features：Manual Iris Lens 1-inch 50mm F1.4 C Mount Industrial camera Lens

    Model
    VM5014MPC

    Dimension


    Industries Application
    Suitable for Industrial Inspection . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C and so on
    VM5014MPC Specifications
