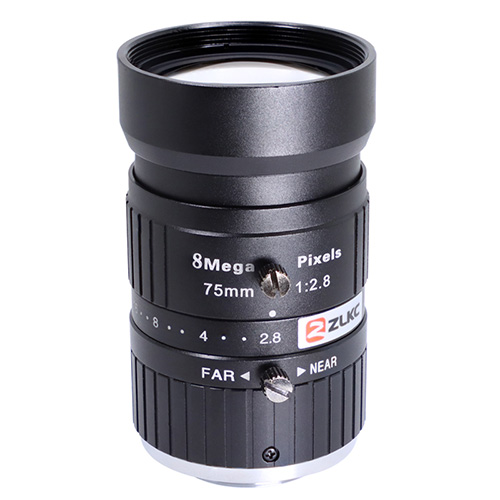

    C-Mount Lens VM7528MPC 75mm 8MP F2.8 Manual Iris camera Lens 1-inch
    1″C-Mount 75mm F2.8
    High resolution ,high clarity
    Can suppress stray light
    High resolution ,high clarity
    Locking set screws for focus and Iris
    Lower price,High cost performance
    Contact
    Tel:+86 020-38312466
    SpecificationsDimensionPDF downloadOther

    Model

    VM7528MPC

    Image Size

    1-inch

    Focal length

    75mm

    F No.

    F2.8

    M.O.D(m)

    0.5m-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1" Type

    9.69°x7.22°

    2/3" Type

    6.73°x5.10°

    1/1.8" Type

    5.5°x4.0°

    Distortion

    1"Type

    -0.05%

    Mount

    C-Mount

    Dimension

    Ф40x60mm

    Weight

    148.0g

    Filter

    M37 P=0.75mm

    Remark

    8MP HD LENS

    Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1″ C-mount
    ◆ Focal length：f=75mm
    ◆ F No.：F2.8-C
    ◆ Features：Manual Iris Lens 1-inch 75mm F2.8 C Mount Industrial camera Lens

    Model
    VM7528MPC

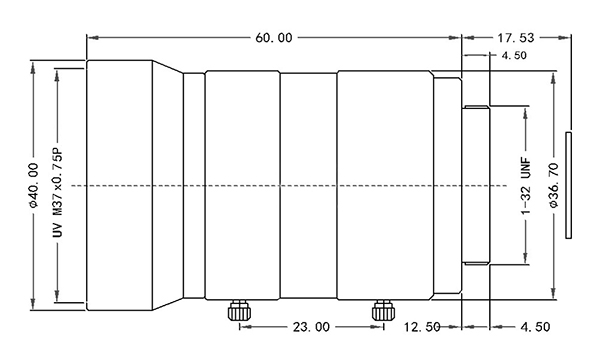

    Dimension


    Industries Application
    Suitable for Industrial Inspection . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C and so on
    VM7528MPC Specifications
