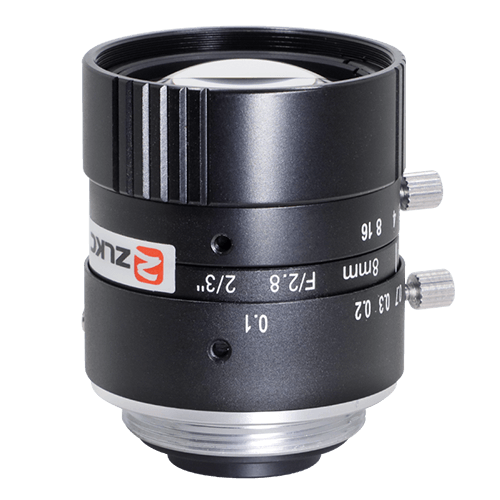

8MP 8mm FA Lens C Mount

Working Distance

Magnification

2/3" Field of View(8.45*7.07mm)

Model

LM0828MP8

mm

X

H

V

Image Size

Φ11mm(2/3")

∞

-

-

-

Focal length

8mm

1000

0.0079X

1076.05

901.889

F No.

F2.8-16

900

0.0870X

970.56

813.432

M.O.D(m)

0.1-Inf.

800

0.0098X

865.071

727.974

Operation

Iris

Manual

700

0.0112X

759.582

636.516

Focus

Manual

650

0.0120X

706.838

592.287

视场角(D*H*V)

Angle of View

2/3"

68.45°×54.96°×47.05°

600

0.0130X

654.094

548.058

Distortion

<0.28%

550

0.0141X

601.350

503.830

BFL

10.39mm

500

0.0155X

548.606

459.601

Flange BFL

17.526mm

450

0.0171X

495.862

415.373

Mount

C-Mount

400

0.0192X

443.118

371.144

CRA

12.2°

350

0.0218X

390.375

326.916

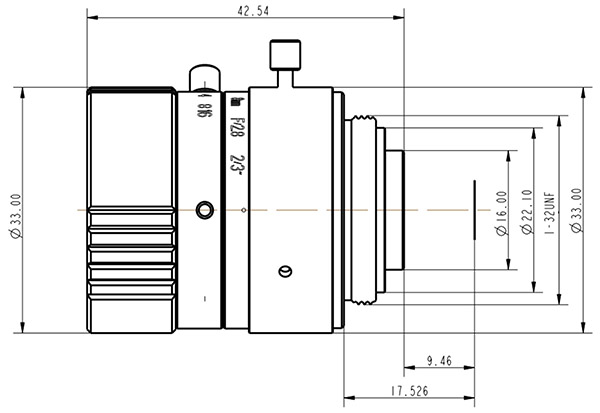

Dimension

Φ33×34.57mm

300

0.0252X

337.631

282.688

Weight

64.5g

250

0.0299X

284.889

238.461

Resolution

8MP

200

0.0367X

232.148

194.235

Filter Thread

M30.5x 0.5

150

0.0476X

179.408

150.010

Working Temperature

-20ºC ～ +60ºC

100

0.0677X

126.673

105.790
