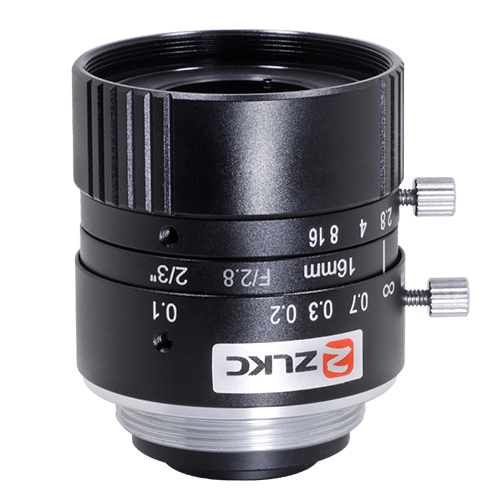

8MP 16mm FA Lens C Mount

Working Distance

Magnification

2/3" Field of View(8.45*7.07mm)

Model

LM1628MP8

mm

X

H

V

Image Size

Φ11mm(2/3")

∞

-

-

-

Focal length

16mm

1000

0.0159X

531.721

444.986

F No.

F2.8-16

900

0.0177X

478.921

400.797

M.O.D(m)

0.1-Inf.

800

0.0199X

426.122

356.607

Operation

Iris

Manual

700

0.0227X

373.322

312.417

Focus

Manual

650

0.0244X

346.922

290.322

(D*H*V)

Angle of View

2/3"

37.2°×30.32°×23.00°

600

0.0264X

320.522

268.227

Distortion

<0.3%

550

0.0288X

294.122

246.133

BFL

10.0mm

500

0.0316X

267.722

224.038

Flange BFL

17.526mm

450

0.0351X

241.322

201.943

Mount

C-Mount

400

0.0394X

214.922

179.848

CRA

11.2°

350

0.0449X

188.522

157.753

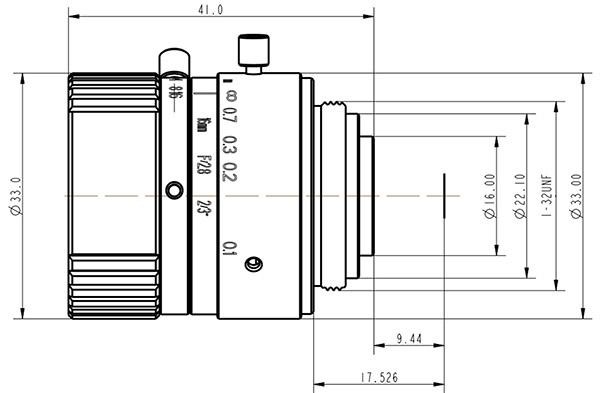

Dimension

Φ33×32.5mm

300

0.0522X

162.121

135.658

Weight

59.5g

250

0.0624X

135.721

113.564

Resolution

8MP

200

0.0774X

109.320

91.470

Filter Thread

M30.5x 0.5

150

0.1021X

82.919

69.376

Working Temperature

-20ºC ～ +60ºC

100

0.1498

56.517

47.282
