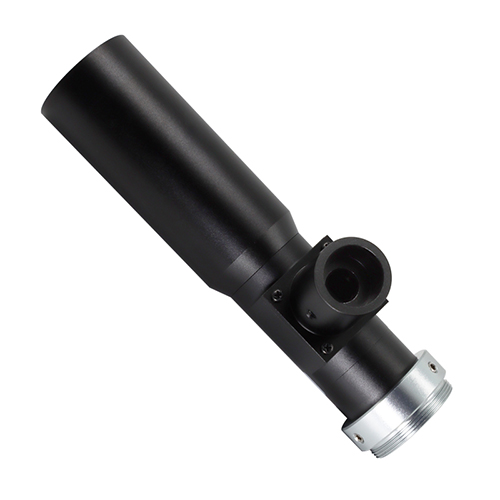

ZLKC high-resolution coaxial Telecentric lens HM20X110CT 2x 110mm: 2/3″ C-Mount 2x coaxial; Megapixels high-resolution telecentric lens; supporting working distance 110mm; Wide magnification ranges from 0.5X to 6X; object telecentric design; Low distortion,Excellent image uniformity; large aperature for high brightness; Metal structure，Compact design; widely applied in instant measurement

Contact

Tel:+86 020-38312466

Specifications Dimension PDF download Other

Model		HM20X110CT
Max Image Size		2/3-inch
Magnification		2 X
WD (mm)		110
Working F/#		13.6
Object NA(mm)		0.074
Depth of field(mm)		0.42
Distortion		<0.05%
Resolution		4.5μ
FOV（WxH）(mm)	2/3"(8.8x6.6)	4.3x3.3
	1/1.8"(7.13x5.37)	3.6x2.7
	1/2"(6.4x4.8)	3.2x2.4
(° max)		<0.1°
Mount		C-Mount
TTL		149.73mm

Product Features
◆ Brand：ZLKC
◆ Image Size：2/3″ C-mount
◆ Magnification：2X
◆ WD：110mm
◆ Features：Coaxial Telecentric Lens C-Mount 2x instant measurement lens

Model
HM20X110CT

Dimension

Industries Application
These are used in machine vision . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C,OCR and OCV systems to read or confirm the presence of codes and characters;detect defects, contaminants, functional flaws for Inspection application;measurement, inspection, positioning, identification, etc.
