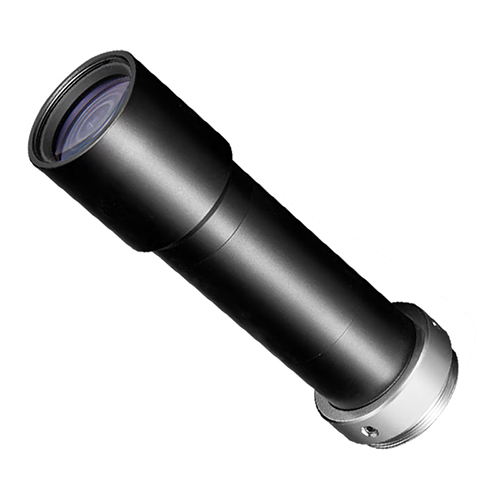

ZLKC megapixel Telecentric lens FM07X145T 0.7x 145mm: 2/3″ C-Mount 0.7x; Megapixels high-resolution telecentric lens; supporting working distance 145mm; Wide magnification ranges from 0.5X to 6X; object telecentric design; Low distortion,Excellent image uniformity; large aperature for high brightness; Metal structure，Compact design; widely applied in instant measurement

Contact

Tel:+86 020-38312466

Specifications Dimension PDF download Other

Model		FM07X145T
Max Image Size		2/3-inch
Magnification		0.7X
WD (mm)		145
Working F/#		16.8
Object NA(mm)		0.00713
Depth of field(mm)		2.7
Distortion		<0.1%
Resolution		16.2μ
FOV（WxH）(mm)	2/3"(8.8×6.6)	12.6x9.4
	1/1.8"(7.13×5.37)	10.2x7.7
	1/2"(6.4×4.8)	9.1x6.9
(° max)		<0.1°
Mount		C-Mount
TTL		110.4mm

Product Features
◆ Brand：ZLKC
◆ Image Size：2/3″ C-mount
◆ Magnification：0.7X
◆ WD：145mm
◆ Features：High Mag Telecentric Lens C-Mount 0.7x instant measurement lens

Model
FM07X145T

Dimension

Industries Application
These are used in machine vision . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C,OCR and OCV systems to read or confirm the presence of codes and characters;detect defects, contaminants, functional flaws for Inspection application;measurement, inspection, positioning, identification, etc.
