ITS Lens KM1614MP8C 16mm 8MP Manual Iris Lens, 1-inch F1.4 Fixed focus C Mount Traffic camera lens: C-Mount f=16mm F1.4; Maximum image circle of 1"; Ultra-High Resolution 8MP; high contrast,delivers clean and sharp images; Low distortion,Excellent low-light performance; Locking set screws for focus and Iris

Contact

Tel:+86 020-38312466

Specifications Dimension PDF download Other

Model		KM1614MP8C
Image Size		1-inch
Focal length		16mm
F No.		F1.4-C
M.O.D(m)		0.3
Operation	Iris	Manual
	Focus	Manual
Horizontal Angle of View	1" Type	53.5°×43.5°×33°
	2/3"Type	39.2°×31.5°×23.7°
Distortion	1.1" Type	-2.7%
BFL		14mm
MFL		11.7mm
Flange BFL		17.526mm
Mount		C-Mount
Dimension		Ф46x69mm
Weight		232.0g
Operating temperature		-30℃～+70℃
Remark		8.0 Megapixel ITS Lens

Product Features
◆ Brand：ZLKC
◆ Image Size：1″ C-mount
◆ Focal length：f=16mm
◆ F No.：F1.4-C
◆ Features：1-inch ITS Lens 16mm 8MP Manual Iris Lens, F1.4 C Mount Traffic camera lens

Model
KM1614MP8C

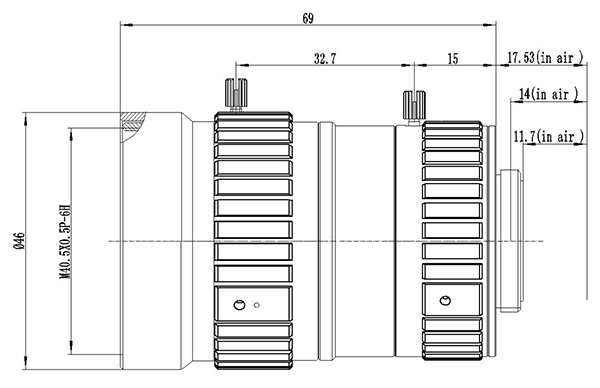

Dimension

Industries Application
These are used in video surveillance industry and ITS. Violation behaviors detection: driving on lane line, Illegal lane change, wrong-way driving detection, seatbelt and phone call detectionThese cover applications from ITS and road monitoring and bank to security bayonet monitoring, Electronic police snapshot and traffic cameras and so on
