ITS Lens KM3514MP8C 35mm 8MP Manual Iris Lens, 1-inch F1.4 Fixed focus C Mount Traffic camera lens: C-Mount f=35mm F1.4; Maximum image circle of 1"; Ultra-High Resolution 8MP; high contrast,delivers clean and sharp images; Low distortion,Excellent low-light performance; Locking set screws for focus and Iris

Contact

Tel:+86 020-38312466

Specifications Dimension PDF download Other

Model		KM3514MP8C
Image Size		1-inch
Focal length		35mm
F No.		F1.4-C
M.O.D(m)		0.3
Operation	Iris	Manual
	Focus	Manual
Horizontal Angle of View	1" Type	25.9°×20.6°×15.5°
	2/3"Type	17.7°×14.2°×10.62°
	1/2"Type	12.9°×10.3°×7.72°
Distortion	1.1" Type	-1.98%
BFL		13..9mm
MFL		12-13.5mm
Flange BFL		17.526mm
Mount		C-Mount
Dimension		Ф50x84mm
Weight		325.0g
Operating temperature		-30℃～+70℃
Remark		8.0 Megapixel ITS Lens

Product Features
◆ Brand：ZLKC
◆ Image Size：1″ C-mount
◆ Focal length：f=35mm
◆ F No.：F1.4-C
◆ Features：1-inch ITS Lens 35mm 8MP Manual Iris Lens, F1.4 C Mount Traffic camera lens

Model
KM3514MP8C

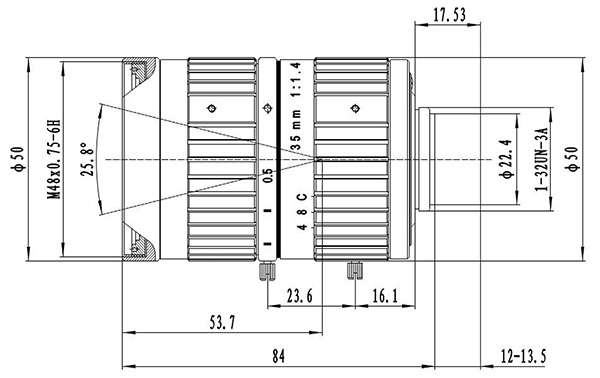

Dimension

Industries Application
These are used in video surveillance industry and ITS. Violation behaviors detection: driving on lane line, Illegal lane change, wrong-way driving detection, seatbelt and phone call detectionThese cover applications from ITS and road monitoring and bank to security bayonet monitoring, Electronic police snapshot and traffic cameras and so on
