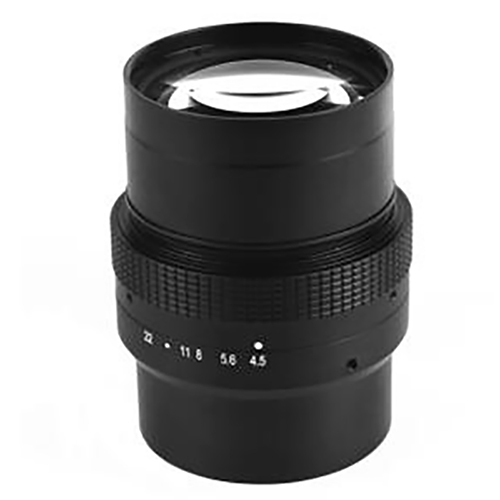

Line Scan Lens Φ30 Image Circle FL29mm TM2904K10 0.1Ｘ V-Mount

Line Scan Lens Φ30 Image Circle FL29mm TM2904K10 0.1Ｘ V-Mount: 0.1Ｘ V-Mount f=29mm; Maximum image circle Φ30mm; High resolution and high measurement accuracy; Small Magnification and low distortion; applicable to 4K/8K 7μm line scan cameras; Option: Interface from V-Mount to M42,M58,F-mount

Tel:+86 020-38312466

Specifications Dimension PDF download Other

FL29mm Φ30 Image Circle 0.1X Line Scan Lens
Model			TM2904K10
Max Image Circle			Φ30
Focal length			29mm
F No.			F4.0
Distortion			<0.1%
Operation		Iris	Manual
		Focus	Manual
Flange BFL			26mm
Mount			V-Mount
Dimension			Φ46.3×39.3mm
Filter			M35x 0.5
Working Temperature			-20ºC ～ +60ºC
Working Distance(mm)	Optical Magnification	Conjuguate Distance(mm)	（Φ28）Field of View(mm)	（Φ30）Field of View(mm)
594.7±5	0.05X	661.5±9	560	600
299.7±5	0.1X	368.0±9	280	300
103.0±5	0.3X	177.2±9	93.3	100

Product Features
◆ Brand：ZLKC
◆ Image Circle：Φ30 V-Mount
◆ Focal length：f=29mm
◆ F No.：F4.0
◆ Features：FL29mm V-Mount Φ30 Format 0.1X Marco Line Scan Lens

Model
TM2904K10

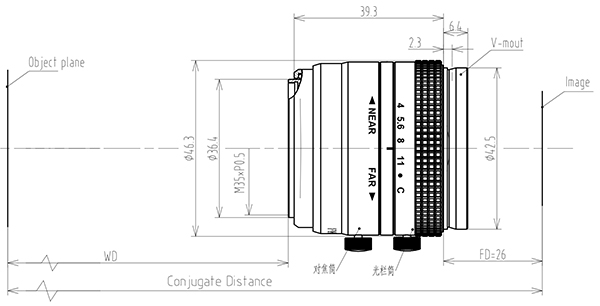

Dimension

Industries Application
These are used in machine vision imaging and detection of extra long/large size workpieces. High resolution and high measurement accuracy,Small Magnification and low distortionand the Multi-layer Coating can reduce flaring and vignetting and effectively improve light transmittance and image quality.These cover applications from PCB, LCD, lithium battery, photovoltaic testing, precision positioning, automotive, industrial equipment and other defect detection.

TM2904K10 Specifications
