Line Scan Lens Φ60 Image Circle FL40mm TM4008K20 0.2Ｘ M72*P0.75

Line Scan Lens Φ60 Image Circle FL40mm TM4008K20 0.2Ｘ M72*P0.75: 0.2Ｘ M72*P0.75 f=40mm; Maximum image circle Φ60mm; High resolution and high measurement accuracy; Small Magnification and low distortion; applicable to 4K/8K 7μm line scan cameras; Option: Interface from V-Mount to M42,M58,F-mount

Tel:+86 020-38312466

Specifications Dimension PDF download Other

FL40mm Φ60 Image Circle 0.2X Line Scan Lens
Model			TM4008K20
Max Image Circle			Φ60
Focal length			40mm
F No.			F5.6
Distortion			<0.1%
Operation		Iris	Manual
		Focus	Manual
Flange BFL			12mm
Mount			M72*P0.75
Dimension			Φ75.5×47.21mm
Filter			M43x 0.75
Working Temperature			-20ºC ～ +60ºC
Working Distance(mm)	Optical Magnification	Conjuguate Distance(mm)	（Φ58）Field of View(mm)	（Φ60）Field of View(mm)
610±5	0.07X	674±9	828	857
226±5	0.2X	296±9	290	300
186±5	0.25X	258±9	232	240

Product Features
◆ Brand：ZLKC
◆ Image Circle：Φ60 M72*P0.75
◆ Focal length：f=40mm
◆ F No.：F5.6
◆ Features：FL40mm M72*P0.75 Mount Φ60 Format 0.2X Marco Line Scan Lens

Model
TM4008K20

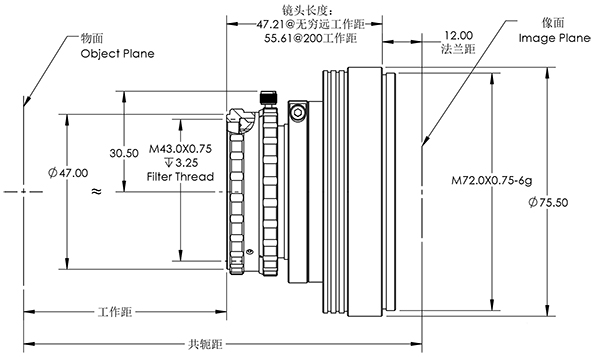

Dimension

Industries Application
These are used in machine vision imaging and detection of extra long/large size workpieces. High resolution and high measurement accuracy,Small Magnification and low distortionand the Multi-layer Coating can reduce flaring and vignetting and effectively improve light transmittance and image quality.These cover applications from PCB, LCD, lithium battery, photovoltaic testing, precision positioning, automotive, industrial equipment and other defect detection.

TM4008K20 Specifications
