Model

HK1616MP5

Image Size

1-inch

Focal length

16mm

F No.

F1.6-22

M.O.D(m)

0.3-Inf.

Operation

Iris

Manual

Focus

Manual

Horizontal Angle of View

1"Type

54.2°×44.1°×33.6°

2/3"Type

38.3°×30.8°×23.2°

1/2"Type

28.2°×22.5°×16.9°

Distortion

1"Type

-2.30%

1/2"Type

-1.0%

Back focal length

12.17mm

Mount

C-Mount

1"FOV

824mm×611mm(WD=1000mm)

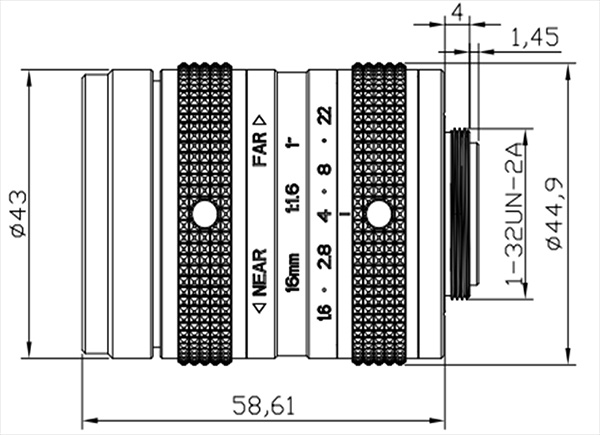

Dimension

Ф41.5x57.8mm

Weight

210.0g

Horizontal Resolution

150lp/mm

Filter Thread

M37.5x 0.5

Working Temperature

-20ºC ～ +60ºC
