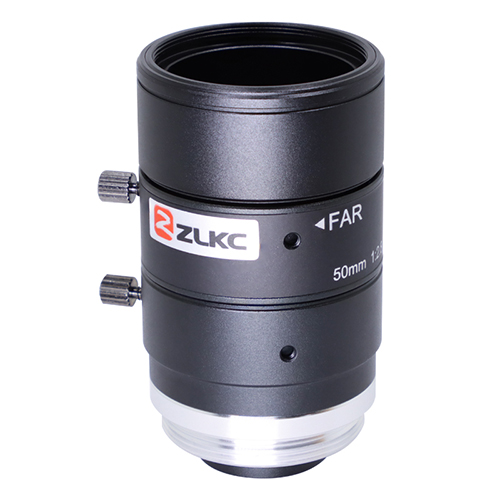

低物距工业镜头50mm 2/3” C Mount 10MP

型号Model

LM5028MP10

像面大小Image circle

2/3-inch (Φ11.4)

焦距Focal length

50mm±5%

光圈范围F No.

F2.8-16

最短物距M.O.D(m)

0.3-Inf.

控制方式Operation

Iris

Manual手动调整

Focus

Manual手动调整

视场角Horizontal Angle of View

2/3"Type

12.8°×10.2°×7.7°

1/1.8"Type

9.7°×8.0°×5.4°

1/2"Type

8.7°×7.0°×5.2°

畸变Distortion

At 0.6m

-0.02%

后焦距Back focal length

11.8mm

法兰后焦Flange Back Focal Length

17.526mm

接口Mount

C-Mount

相对亮度Relative Illumination

70%

最大主光线夹角（CRA)

3.9°

外形尺寸Dimension

Ф29.4x43.9mm

重量Weight

72.4g

镜片构成（Lens structure)

5groups，7elements

滤镜尺寸Filter Thread

M25.5*P0.5

工作温度Working Temperature

-20ºC ～ +60ºC
