型号Model

FK1228MP20

像机尺寸Image Size

1.1-inch

焦距Focal length

12mm

光圈范围F No.

F2.8-22

最短物距M.O.D(m)

0.1-Inf.

控制方式Operation

Iris

Manual手动调整

Focus

Manual手动调整

视场角Horizontal Angle of View

1.1" Type

70.6°×59.2°×45.4°

1"Type

67.6°×56.7°×43.5°

1/2"Type

37.1°×29.4°×22.0°

1/3"Type

27.6°×22.1°×16.8°

畸变Distortion

-0.85%@y=8.8㎜;-0.6%@y=4㎜

法兰后焦距(Flange BFL)

17.526mm

后焦距Back focal length

10.6mm

接口Mount

C-Mount

近摄视野1.1"FOV

133.1mm×99.8mm(WD=100mm)

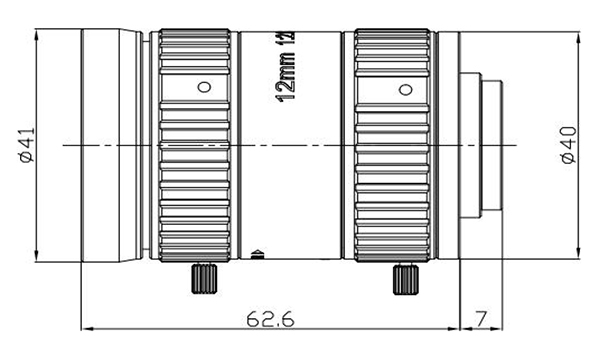

外形尺寸Dimension

Ф41x62.6mm

重量Weight

203.0g

滤镜尺寸Filter Thread

M37.5x 0.5mm

工作温度Working Temperature

-20ºC ～ +60ºC
