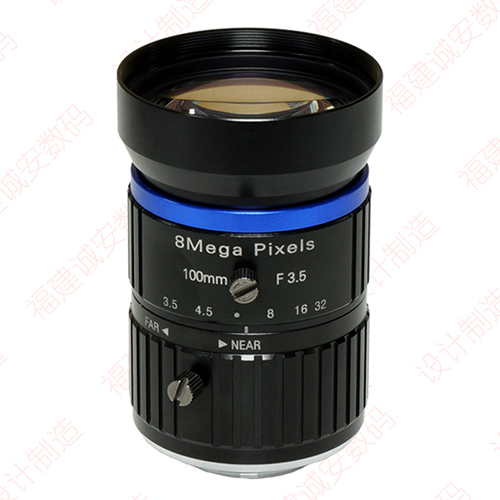

    1-inch FA Lens HM10035MPC 100mm 8MP C-Mount
    1″ C Mount f=100mm F3.5
    High resolution ,excellent image uniformity
    high contrast,Can suppress stray light
    Low distortion,High measurement accuracy
    Locking set screws for focus and Iris
    compact appearance for device integration
    Contact
    Tel:+86 020-38312466
    SpecificationsDimensionPDF downloadOther

    Model

    HM10035MPC

    Image Size

    1-inch

    Focal length

    100mm

    F No.

    F3.5

    M.O.D(m)

    0.5m-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1"Type

    7.2°x5.5°

    2/3" Type

    5.0°x3.8°

    1/1.8" Type

    4.1°x3.1°

    Distortion

    1"Type

    -0.02%

    Mount

    C-Mount

    Dimension

    Ф42x58.5mm

    Filter Thread

    M40.5*0.5

    Weight

    176.0g

    Remark

    8MP HD LENS

    Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1″ C-mount
    ◆ Focal length：f=100mm
    ◆ F No.：F3.5
    ◆ Features：1-inch 100mm 8MP Manual Iris Lens,  F3.5 Fixed focus Lens C Mount HD Lens

    Model
    HM10035MPC

    Dimension


    Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on
    HM10035MPC Specifications
