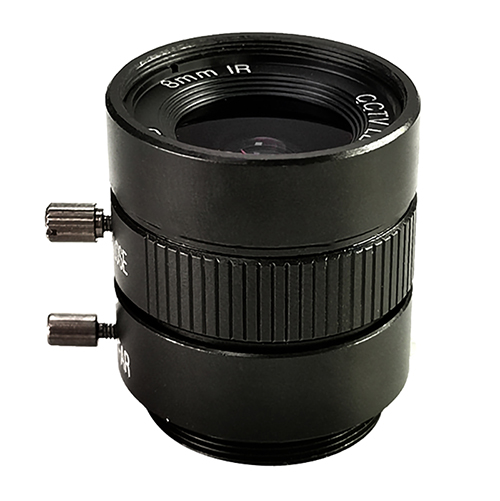

    CS-Mount Lens VM0812MPC 8mm Manual Iris Lens 1/1.8-inch 3MP
    1/1.8″ CS 8mm
    Can suppress stray light
    Locking set screws for focus and Iris
    Metal structure，compact appearance
    Used in CS-Mount Camera.
    Contact
    Tel:+86 020-38312466
    SpecificationsDimensionPDF downloadOther

    Model

    VM0812MPC

    Image Size

    1/1.8-inch

    Focal length

    8mm

    F No.

    F1.6

    M.O.D(m)

    0.25m-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1/2" Type

    42.6°x32.5°

    1/1.8"Type

    47.4°x36.3°

    Distortion

    1/1.8"Type

    -0.8%

    Filter

    M27 P=0.5mm

    Mount

    CS-Mount

    Dimension

    Ф30x29mm

    Weight

    54.0g

    Remark

    3MP LENS

    Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/1.8″ C-mount
    ◆ Focal length：f=8mm
    ◆ F No.：F1.6-C
    ◆ Features：1/1.8-inch 8mm 3MP Manual Iris Lens CS Mount HD Lens

    Model
    VM0812MPC

    Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on
    VM0812MPC Specifications
