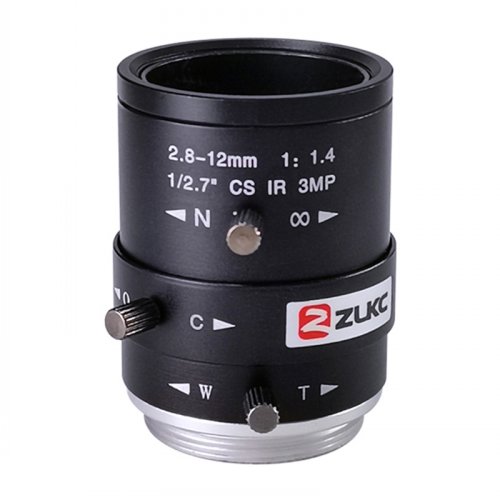

    ZLKC Lens VM2812MPIR 2.8-12mm Manual Iris Lens 3 Megapixel 1/2.7” IR CCTV Lens CS Mount
    1/2.7″CS-Mount 2.8-12mm F1.4
    IR Manual Iris Lens
    Optical glass material
    Locking set screws for focus and zoom
    Metal structure，compact appearance
    Contact
    Tel:+86 020-38312466
    SpecificationsDimensionPDF downloadOther

    Model

    VM2812MPIR

    Image Size

    1/2.7-inch

    Focal length

    2.8-12mm

    F No.

    F1.4-C

    M.O.D(m)

    0.2m

    Operation

    Iris

    Manual

    Focus

    Manual

    Zoom

    Manual

    Distortion

    1/2.7"Type

    -11%@wide

    1/3"Type

    -9%@wide

    Horizontal Angle of View

    1/2.7"Type

    102°×32.4°

    Mount

    CS-Mount

    Dimension

    Ф30x37.5mm

    Weight

    62.0g

    Remark

    3MP IR CCTV LENS

    Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/2.7″ CS-mount
    ◆ Focal length：f=2.8-12mm
    ◆ F No.：F1.4-C
    ◆ Features：1/2.7-inch 2.8-12mm 3 Megapixel Manual Iris Lens  CCTV  Lens CS Mount HD Lens

    Model
    VM2812MPIR

    Dimension


    Industries Application
    These kinds of lenses are suitable for road monitoring, machine vision and so on.
