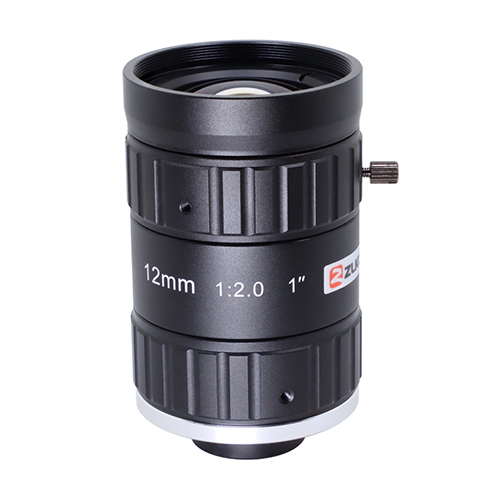

    12MP FA Lens HK1220MP12 12mm Low distortion Lens 1-inch F2.0 C-Mount
    1″ C-Mount f=12mm F2.0
    High resolution,wavelength 420-1000nm
    high contrast,Can suppress stray light
    Low distortion 0.3% or less
    Locking set screws for focus and Iris
    compact appearance for device integration
    Contact
    Tel:+86 020-38312466
    SpecificationsDimensionPDF downloadOther

    Model

    HK1220MP12

    Image Size

    1-inch

    Focal length

    12mm

    F No.

    F2.0-22

    M.O.D(m)

    0.1-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1" Type

    67.6°×56.7°×43.5°

    1/2"Type

    36.2°×30.1°×23.1°

    1/3"Type

    27.8°×23.1°×16.9°

    Distortion

    -0.6%

    Back focal length

    10.5mm

    Mount

    C-Mount

    1"FOV

    103.6mm×81.8mm(WD=100mm)

    Dimension

    Ф36.4x45.9mm

    Weight

    203.0g

    Horizontal Resolution

    180lp/mm

    Filter Thread

    M37.5x 0.5mm

    Working Temperature

    -20ºC ～ +60ºC

    Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1″ C-mount
    ◆ Focal length：f=12mm
    ◆ F No.：F2.0-22
    ◆ Features：1-inch FA Lens 12mm 12MP Manual Iris Lens, Fixed focus Lens Low distortion C Mount HD Lens

    Model
    HK1220MP12

    Dimension


    Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on
