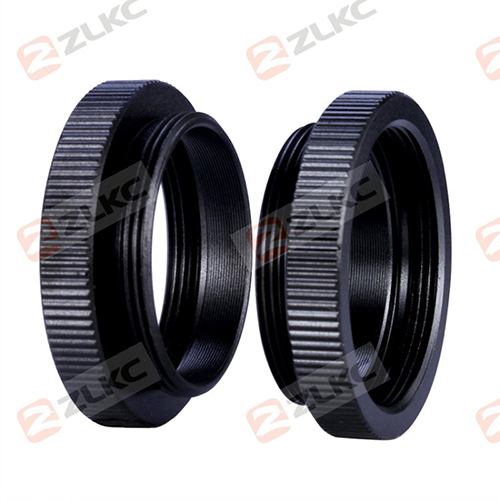

Extension Tubes VM5C 5mm C-CS Mount Lens Adapter adapter ring: 规格：C/CS型 5mm; 材质：优质铝合金; 颜色：亚光黑色; 外径：31mm; 特点：高精度,小于0.01; 适用工业相机、C转CS接口等

Contact

Tel:+86 020-38312466

Specifications Dimension PDF download Other

型号Model	VM0.5C	VM1C	VM2C	VM5C	VM10C	VM15C	VM20C	VM30C	VM40C	VM50C
目距length	0.5mm	1mm	2mm	5mm	10mm	15mm	20mm	30mm	40mm	50mm

规格特性
品牌：ZLKC(中联科创)
规格接口：C/CS型
目距：5mm
外部口径：31mm
特点：高精度,小于0.01工差,转接后保持不松动,不影响成像。

订货型号
VM5C 转接环

外形尺寸

应用场景
镜头接圈是一种用于增加镜头与图像传感器之间距离的接圈,当聚焦不清时,通过在镜头和相机之间单独或者组合使用这些接圈，当连接上接环时，可以观察到视场、工作距离和放大倍数产生变化,以帮助镜头可以呈现最清晰的图像。

系列推荐
C式安装座从基准面到焦点的距离为17.562毫米，CS式距焦点距离为12.5毫米。如果要将一个Ｃ安装座镜头安装到一个CS安装座摄像机上时，则需要使用镜头转换环。这种转换环就叫5mm C-CS接环。同系列规格可选0.1mm 1mm 2mm 5mm 10mm 15mm 20mm 30mm 40mm 50mm 100mm 。

VM-C adapter ring Specifications
