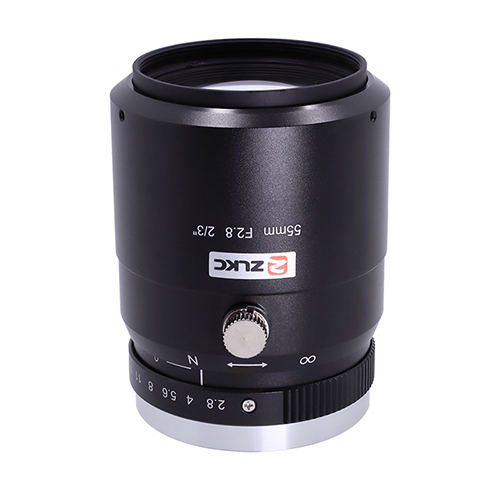

型号Model

TM5528MP5

像机尺寸Image Size

2/3-inch

焦距Focal length

55mm

光圈范围F No.

F2.8-C

最短物距M.O.D(m)

0.12-Inf.

控制方式Operation

Iris

Manual手动调整

Focus

Manual手动调整

视场角Horizontal Angle of View

2/3" Type

11.6°×9.3°×6.9°

1/2"Type

8.5°×6.8°×5.0°

1/3"Type

6.4°×5.1°×3.8°

畸变Distortion

4.2%@y=5.5㎜;0.16%@y=3.0㎜

后焦距Back focal length

13.21mm

接口Mount

C-Mount

近摄视野2/3"FOV

17.2×12.8mm (WD=120mm)

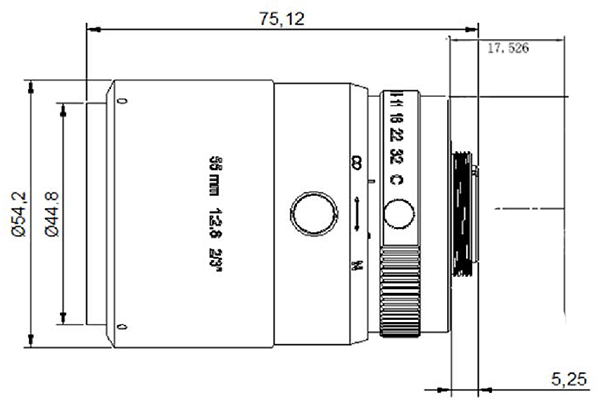

外形尺寸Dimension

Ф54.2x75.12mm

重量Weight

337.0g

分辨率Horizontal Resolution

200lp/mm

滤镜尺寸Filter Thread

M43x 0.75mm

工作温度Working Temperature

-20ºC ～ +60ºC
