规格：2/3″C型 f=25mm
500万像素高分辨率
宽带增透膜,提高透光性能
解像力高,成像一致性好
低畸变,图像周边光亮比高
体积小,兼容可见光和红外波段
申请报价
|
500万像素工业镜头25mm 2/3” C Mount |
||
|
型号Model |
LM2528MP5 |
|
|
像面大小Image circle |
2/3-inch (Φ11) |
|
|
焦距Focal length |
25mm |
|
|
光圈范围F No. |
F2.8-16 |
|
|
最短物距M.O.D(m) |
0.2-Inf. |
|
|
控制方式Operation |
Iris |
Manual手动调整 |
|
Focus |
Manual手动调整 |
|
|
视场角Horizontal Angle of View |
2/3"Type |
24.61°×19.83°×14.95° |
|
1/2"Type |
18.06°×14.50°×10.90° |
|
|
1/3"Type |
13.60°×10.90°×8.19° |
|
|
近摄视野FOV |
2/3"Type |
87.40×69.80×52.28mm |
|
1/2"Type |
63.42×50.69×37.99mm |
|
|
1/3"Type |
47.51×37.99×28.48mm |
|
|
畸变Distortion |
-0.1% |
|
|
后焦距Back focal length |
11.733mm |
|
|
法兰后焦Flange Back Focal Length |
17.526mm |
|
|
接口Mount |
C-Mount |
|
|
最大主光线夹角 CRA |
6.7° |
|
|

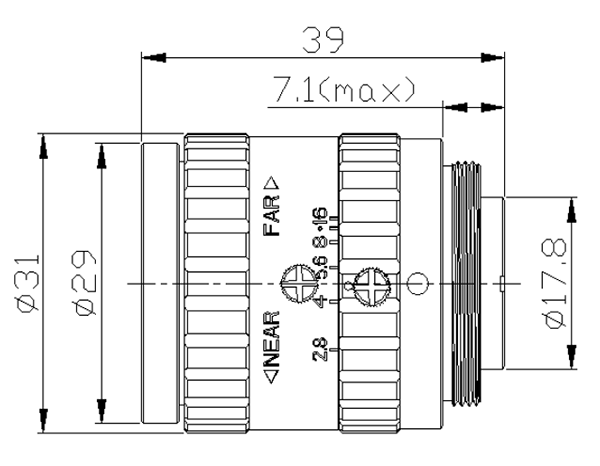

外形尺寸Dimension |
Φ31×30.75mm |
|
|
重量Weight |
54.0g |
|
|
滤镜尺寸Filter Thread |
M27*P0.5 |
|
|
工作温度Working Temperature |
-20ºC ～ +60ºC |
|
